Gate Valves are essential components in various industries, ensuring fluid control and efficient regulation in systems. Whether you're involved in water treatment, oil and gas, or industrial applications, understanding the role and function of sluice valves, a common form of gate valve, is vital for seamless operations. This comprehensive guide will explore sluice valves, their working principles, applications, and differences from other valves like globe or ball valves. By the end of this post, you'll have a thorough understanding of sluice valves and be able to make informed decisions when selecting and utilizing these valves.

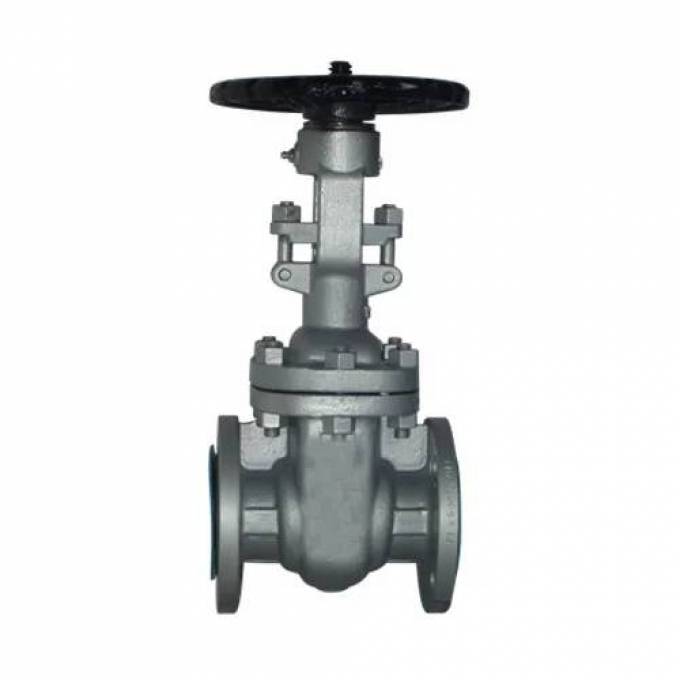

What Are Sluice Valves?
A sluice valve is a type of gate valve commonly used in industries where the regulation and isolation of fluids are necessary. They are designed for on-off operations, which means they either completely open or completely shut, allowing for a precise shutoff of the flow. Sluice valves are also known for their durability and reliability in various high-pressure applications. Typically made from cast iron, they are preferred in water supply systems, sewage treatment, and mining.
Key Features of Sluice Valves
-
Durability: Sluice valves are built to last and resist corrosion, making them ideal for water treatment plants and industrial systems.
-
Full Flow: These valves allow for full-flow control when open, minimizing resistance and allowing smooth fluid passage.
-
Leakage Control: Sluice valves offer tight shutoff, ensuring no leakage when fully closed.
-
Simple Design: The gate valve design used in sluice valves is straightforward, with minimal moving parts, reducing wear and tear.
-
Versatility: Sluice valves can be used in multiple industries, ranging from water treatment plants to oil refineries.
How Do Sluice Valves Work?
Sluice valves function similarly to other gate valves. When the valve is open, the gate is lifted, allowing fluid to pass through freely. When closed, the gate seals the passage, preventing any fluid from passing. The mechanism involves a rising stem, which indicates the valve’s open or closed status, and a handwheel or actuator that enables the valve to operate. The pressure from the fluid helps keep the gate in place, ensuring no leakage when the valve is in the closed position.
Applications of Sluice Valves
Sluice valves find widespread use across multiple industries due to their reliable performance and ability to handle various types of fluid. Some of their key applications include:
1. Water Treatment Plants
In water treatment facilities, sluice valves are used to regulate water flow during the filtration and treatment processes. They are critical in controlling the flow of clean water from tanks and reservoirs to different treatment stages, ensuring smooth and efficient operations.
2. Sewage Treatment
Sewage plants use sluice valves to control the flow of wastewater through the treatment stages. These valves provide a simple yet effective way to manage the passage of sewage while ensuring tight shutoffs when needed.
3. Oil and Gas Industry
In the oil and gas industry, sluice valves are used to control the flow of fluids in pipelines, refineries, and distribution networks. Their ability to handle high-pressure systems makes them suitable for such demanding environments.
4. Mining Operations
Mining industries rely on sluice valves to manage the flow of liquids, such as in slurry pipelines, water supply systems, and wastewater disposal.
5. Irrigation Systems
Sluice valves are also commonly employed in agricultural irrigation systems to control the flow of water and regulate pressure in the distribution pipelines.
6. Fire Protection Systems
In fire protection systems, sluice valves are used to manage water flow from fire hydrants and pumps. Their ability to rapidly shut off the flow of water in emergencies makes them critical in ensuring the effectiveness of fire suppression.
How to Choose the Right Sluice Valve
Selecting the appropriate sluice valve is crucial to ensure efficient and effective fluid control. Here are several factors to consider when choosing a sluice valve:
1. Material
Sluice valves are made from different materials, including cast iron, ductile iron, stainless steel, and bronze. The material choice depends on the type of fluid, pressure, temperature, and environmental factors. For example, stainless steel valves are ideal for corrosive fluids, while cast iron is suitable for non-corrosive, lower-pressure systems.
2. Size and Pressure Rating
The size of the sluice valve must match the pipeline’s diameter. Also, the pressure rating should align with the system's operational pressures. Sluice valves are available in a range of sizes, from small residential units to large industrial systems.
3. Flow Control Needs
Consider whether you need a full-flow valve or one that can modulate flow. While sluice valves are typically used for on-off control, some applications may require more precise flow control, in which case another type of valve like a globe valve might be more appropriate.
4. Automation
For larger, automated systems, you might need a sluice valve that can be operated remotely via actuators. Choose a valve with an appropriate actuator size to ensure smooth operation.
Types of Gate Valves vs. Sluice Valves
While sluice valves are a subset of gate valves, it’s essential to understand the broader category of gate valves and how they differ from other types of valves.
1. Knife Gate Valve
Knife gate valves are used in systems where there are slurries or heavy particulate matter. These valves have a blade-like gate that cuts through the material, whereas sluice valves are typically used in clean fluid systems.
2. Wedge Gate Valve
Wedge gate valves are designed with a wedge-shaped gate that creates a tighter seal when closed. This design makes them suitable for high-pressure applications.
3. Rising and Non-Rising Stem Gate Valves
In a rising stem gate valve, the stem rises as the valve opens. Non-rising stem gate valves do not have a rising stem and are typically used in applications where space constraints are present.
Gate Valves: Working and Benefits
Gate valves are versatile, offering a range of benefits and applications across various industries. Some advantages of gate valves include:
1. Full Flow
Gate valves allow for full flow when opened, which minimizes resistance in fluid systems. This feature is crucial in applications requiring minimal pressure loss.
2. Simple Design
The design of a gate valve is straightforward, making them easy to install and maintain. With fewer moving parts, they also experience less wear and tear.
3. Cost-Effective
Because of their simple design and efficiency, gate valves are often more cost-effective than more complex valve types like ball or globe valves.
4. Reliable Shutoff
Gate valves provide a reliable shutoff when closed, preventing leakage in high-pressure systems. This is particularly important in water distribution systems where leaks can lead to inefficiencies and increased costs.
5. Versatility
Gate valves are suitable for a wide range of fluids, including water, gas, and oil, making them ideal for use across multiple industries.
Maintenance Tips for Sluice Valves
Proper maintenance of sluice valves ensures their longevity and reliable operation. Here are a few key maintenance tips:
1. Regular Inspection
Conduct regular inspections to check for signs of wear, corrosion, or damage. Replace any parts that show signs of degradation to avoid system failures.
2. Lubrication
Lubricate the valve stem and moving parts regularly to reduce friction and wear, ensuring smooth operation.
3. Check for Leaks
Ensure that the valve is completely sealed when closed. Any leaks could compromise the system’s pressure or fluid integrity.
4. Clean the Valve
Over time, debris or sediment can build up in the valve, impeding its function. Regularly clean the valve to maintain proper operation.
Frequently Asked Questions (FAQs)
1. What is the primary difference between a gate valve and a sluice valve?
Both are similar in design and function, but sluice valves are specifically designed for water supply and sewage treatment systems, while gate valves can be used in a broader range of applications.
2. Can sluice valves be used in high-pressure systems?
Yes, sluice valves can be used in high-pressure systems, but the material and construction must be suitable for the specific pressure requirements.
3. How do I maintain a sluice valve?
Regular inspection, lubrication, checking for leaks, and cleaning the valve are essential for maintaining a sluice valve’s functionality.
4. Are there alternatives to sluice valves?
Yes, alternatives like globe valves, ball valves, and knife gate valves can be used depending on the specific requirements of the fluid system.
5. What industries use sluice valves?
Sluice valves are commonly used in water treatment plants, sewage treatment, oil and gas, mining, and irrigation systems.
Conclusion
In conclusion, understanding the role and function of gate valves and sluice valves is crucial for industries that rely on efficient fluid control. These valves play an essential part in managing water, wastewater, and other liquids in a wide range of applications. Choosing the right valve for your system, considering factors like size, pressure, and material, can ensure optimal performance and longevity. With the right maintenance practices, sluice valves will continue to provide reliable and efficient performance for many years.
