FR Clothing Requirements for Electric Utility Workers

The electric utility industry is one of the most hazardous sectors in modern infrastructure. Workers routinely operate near energized equipment, high-voltage lines, and environments where electrical arc flashes, thermal burns, and fire hazards are constant threats. To mitigate these risks, Flame-Resistant (FR) clothing has become a fundamental component of personal protective equipment (PPE).

But not just any FR gear will do. Electric utility workers require flame-resistant clothing that meets rigorous industry standards, complies with regulatory mandates, and is suited for the specific risks they face.

Why FR Clothing Is Critical in the Electrical Utility Industry

Electric utility workers face serious on-the-job hazards, including:

• Arc flashes

• Electrical burns

• Thermal exposure

• Explosions and fire

Among these, arc flashes are the most significant reason FR clothing is required. An arc flash can release an intense burst of heat exceeding 35,000°F (19,400°C)—hotter than the surface of the sun. This intense heat can ignite flammable clothing instantly, resulting in fatal burns.

 What FR Clothing Does:

• Self-extinguishes after ignition

• Resists melting, dripping, or sticking to the skin

• Provides thermal insulation from heat exposure

• Reduces the extent and severity of burns

FR clothing doesn’t prevent arc flashes, but it greatly reduces the damage they cause.

Key Standards and Regulations

1. NFPA 70E

The National Fire Protection Association (NFPA) 70E standard is the most critical benchmark for electrical safety in the workplace.

• It defines requirements for arc-rated (AR) FR clothing based on incident energy levels (cal/cm²).

• It categorizes job tasks into arc flash PPE Categories 1–4, with minimum clothing requirements at each level.

• For example:

• Category 1: Minimum 4 cal/cm²

• Category 4: Minimum 40 cal/cm²

Employers are responsible for conducting an arc flash hazard analysis and selecting garments that meet the appropriate category level.

2. ASTM F1506

This standard defines performance requirements for textile materials used in FR clothing for electric arc exposure.

• Garments must self-extinguish, have no melting, and limit after-flame time and char length.

• All garments must display an Arc Thermal Performance Value (ATPV) or Energy Breakopen Threshold (EBT) rating on the label.

3. OSHA (Occupational Safety and Health Administration)

OSHA enforces workplace safety under:

• 29 CFR 1910.269 (for electric power generation, transmission, and distribution)

• General Duty Clause which requires employers to protect workers from recognized hazards

OSHA requires employers to provide FR clothing when exposure to flame or electric arcs is possible, and the clothing must match the hazard's severity.

Labeling Requirements

FR garments must include:

• Compliance statement (e.g., “Meets the requirements of ASTM F1506”)

• Arc rating (ATPV or EBT value in cal/cm²)

• Manufacturer information and care instructions

What Is Arc-Rated Clothing?

Arc-rated (AR) clothing is a subcategory of FR clothing designed specifically for arc flash protection. While all AR clothing is FR, not all FR clothing is arc-rated.

Key Features of AR Clothing:

• Tested for performance against electric arcs

• Assigned a measurable arc rating in cal/cm²

• Evaluated using ASTM F1959/F1959M test method

Workers must wear AR clothing that covers the entire body based on the caloric rating required by the hazard assessment.

Minimum FR Clothing Requirements for Utility Workers

1. Daily Wear

Electric utility workers should wear FR base layers and outer layers as part of their daily uniform. Minimum requirements include:

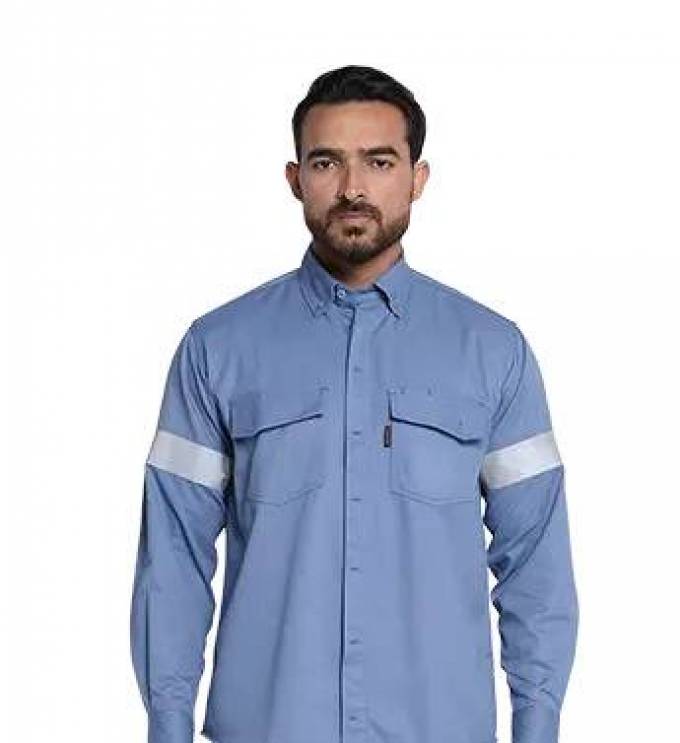

• Long-sleeve FR shirt (4.0 cal/cm² or higher)

• FR pants (equal rating to shirt)

• Non-melting undergarments (cotton, wool, or FR)

• FR coveralls or jackets in cold weather

2. Additional PPE Based on Risk Level

• FR face shields / balaclavas (for higher category tasks)

• Arc-rated rubber gloves and leather protectors

• Hard hats with arc-rated shields

• FR-rated outerwear (rain gear, coats)

PPE must be layered appropriately and never mixed with flammable or melting synthetic materials.

Conducting an Arc Flash Hazard Analysis

Before issuing FR clothing, employers must conduct an arc flash risk assessment, which includes:

1. Identifying potential hazards

1. Determining the likelihood and severity of injury

1. Calculating incident energy levels (in cal/cm²)

1. Assigning appropriate PPE categories

1. Selecting garments with adequate arc ratings

This assessment must be reviewed regularly and updated when changes to equipment or procedures occur.

Best Practices for Selecting FR Clothing

1. Ensure Proper Fit

• Too loose: May snag on equipment

• Too tight: Reduces insulation and protection

• Fit should allow full range of motion without compromising safety

2. Consider Comfort and Mobility

Uncomfortable gear often leads to non-compliance. Choose lightweight, breathable, and flexible materials that meet both safety and comfort needs.

3. Check the Label

• Look for NFPA 70E and ASTM F1506 compliance

• Confirm arc rating meets your hazard assessment

• Check laundering and care instructions

4. Look for Durability

Utility workers face harsh environments. Choose garments that are resistant to abrasion, weather, and wear without compromising safety.

Maintaining FR Clothing

Proper care is essential to maintain flame-resistant properties. Even high-quality FR garments can become unsafe if not properly maintained.

Laundering Guidelines:

• Follow manufacturer’s instructions

• Do not use bleach, fabric softeners, or starch

• Wash separately from regular clothes

• Use industrial laundry services when available

 Inspection Tips:

• Check regularly for rips, holes, or fraying

• Look for stains from flammable materials (oil, grease)

• Replace garments if flame resistance is compromised

Common Mistakes to Avoid

Wearing Flammable Undergarments

Non-FR synthetic fabrics (like polyester) can melt during an arc flash and cause severe burns, even if covered by FR outerwear.

Solution: Wear natural fiber or FR base layers.

 Layering Improperly

Layering is key to protection, but mixing non-FR and FR layers can defeat the purpose.

Solution: Ensure all layers—base, mid, and outer—are flame-resistant or non-melting.

Neglecting Face and Hand Protection

Even with proper clothing, exposed hands and faces remain vulnerable.

Solution: Use arc-rated face shields, balaclavas, gloves, and head protection.

Failing to Update Hazard Assessments

Electrical systems change, and so do the risks.

Solution: Update arc flash assessments whenever system configurations change.

Case Study: The Cost of Non-Compliance

In a 2015 incident, a lineman working on energized equipment was wearing non-FR synthetic clothing under his uniform. An arc flash occurred during the job, igniting his undershirt. The synthetic fabric melted into his skin, resulting in third-degree burns over 40% of his body. Had he been wearing compliant, arc-rated FR clothing—including underlayers—the injury could have been far less severe.

Employer Responsibilities

According to OSHA and NFPA 70E, employers must:

• Conduct hazard assessments

• Provide compliant FR/AR clothing

• Train workers on PPE use and care

• Enforce a strict FR safety policy

• Replace damaged or non-compliant clothing

A proactive FR program not only protects workers—it also reduces insurance costs, prevents downtime, and protects the company's reputation.

Flame-resistant clothing is not a luxury—it's a lifesaving necessity in the electric utility industry. With electrical arcs posing one of the greatest threats to worker safety, the proper use of FR and arc-rated clothing is non-negotiable.

By understanding the standards (NFPA 70E, ASTM F1506), conducting proper hazard assessments, selecting the right garments, and ensuring proper maintenance and training, electric utility employers can dramatically reduce injuries, improve compliance, and protect their most valuable asset: their workers.
